型號/Type
|

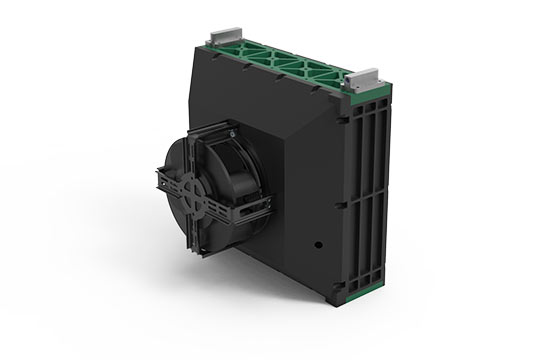

TN-ACGS-I
|

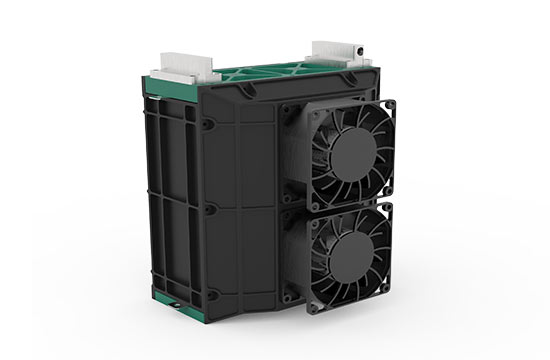

TN-ACGL-I
|
|
性能參數
Performance
|
額定功率/Rated Power
|
200-2000W
|
2000-5000W
|
|
額定電流/Rated Current
|
30
|
60
|
|
峰值功率/Peak Power
|
21W/cell
|
42W/cell
|
|
電壓范圍/Voltage Range
|
0.5-0.95V/cell
|
0.5-0.95V/cell
|
|
比能量參數
Energy Density
|
體積功率密度 /Volumetric power density
|
150-330W/L
|
280-310W/L
|
|
重量功率密度 /Weight Power Density
|
140-450W/kg
|
420-555W/kg
|
|
工作條件
Operating Conditions
|
氫氣入口壓力/Hydrogen Inlet Pressure
|
40-50
|
40-50
|
|
運行環境溫度/Operating Temp
|
-5-40
|
-5-40
|
|
儲存環境溫度/Storage Temp
|
-10-40
|
-10-40
|
|
物理參數
Physical
|
尺寸/Dimensions(40cell)
|
173*196*76
|
173*350*97
|
|
質量/Weight
|
2kg
|
4kg
|
|
應用
Apply
|
優勢/Advangtage
|
輕量化、體積小
|
高功率、無污染
|
|
應用場景/Applycation Area
|
二輪車、無人機
|
備電、觀光車
|
